Try‑Ins

Verify the design before the final.
Every AvaDent try-in comes from the same digital design as the final prosthesis. Check fit, function and esthetics with your patient before the final is made.

Try‑ins and base plates, one digital design

Adjust the teeth chairside, verify fit and phonetics in mono or full color, show the patient an exact copy of the final hybrid, or record the bite on a base plate first.

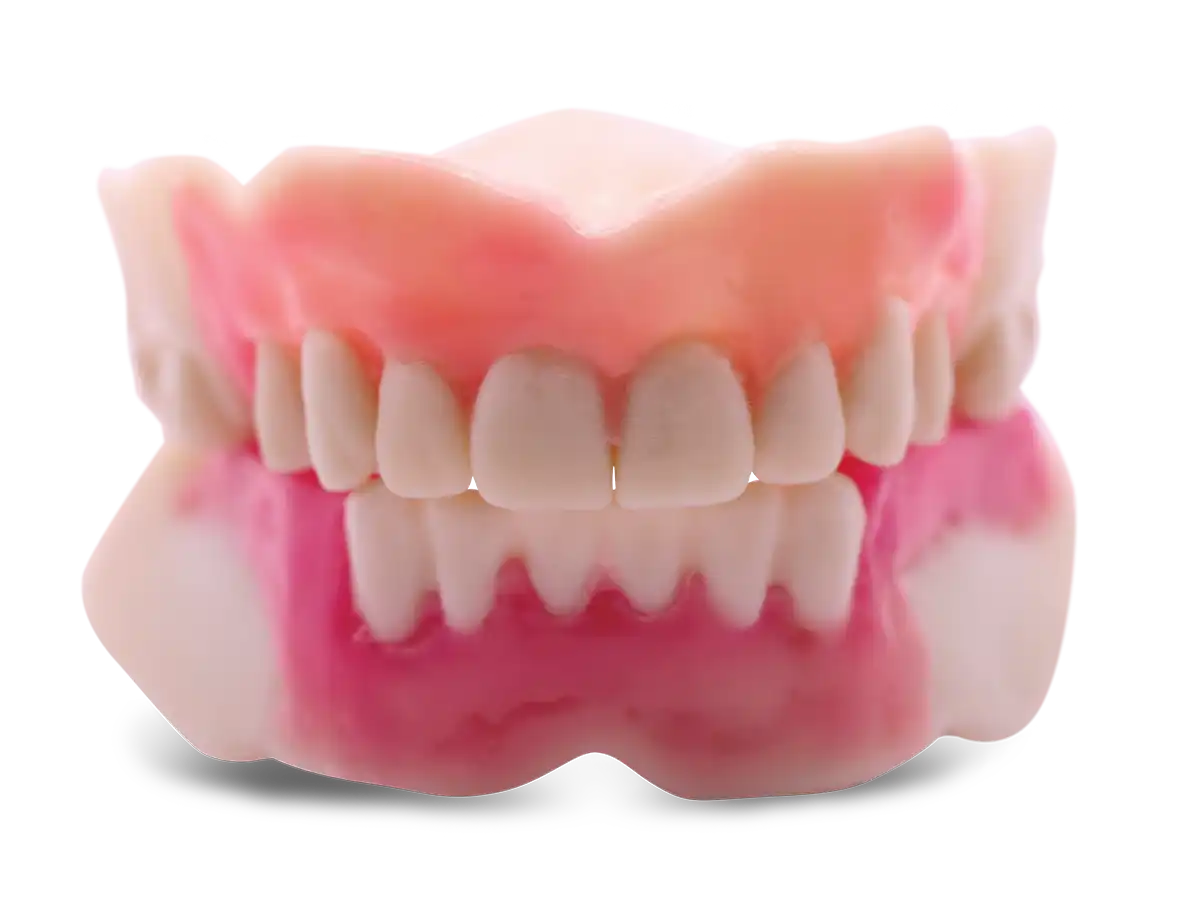

AvaDent Wagner Try-In with teeth set in wax
WTI

Wagner Try‑In

Teeth set in a special wax that softens in hot water, so you can adjust them chairside.
Best for clinicians who like to move teeth, with as few as three 30‑minute appointments.

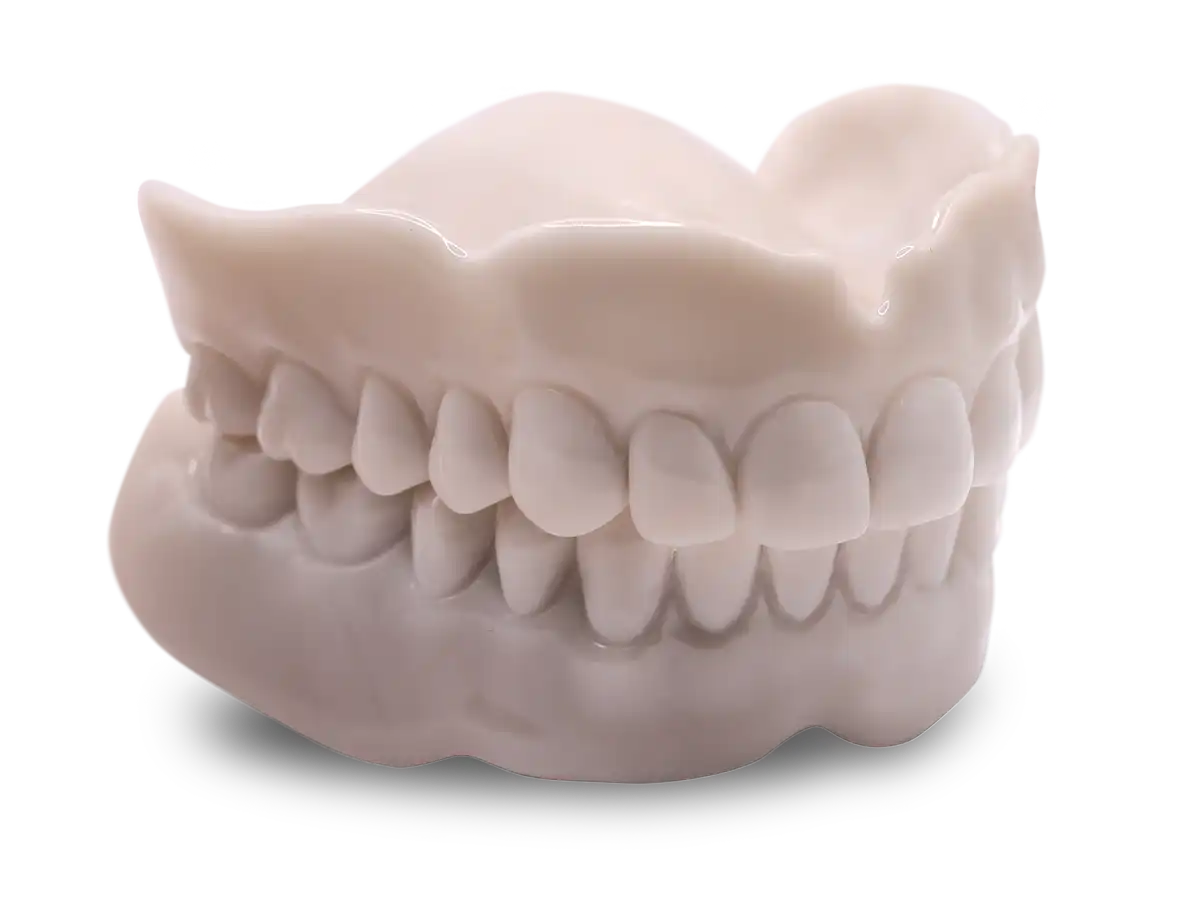

AvaDent Mono-Color Try-In
BTI · most popular

Mono‑Color Try‑In

A functional, one-piece try-in, printed or milled, to verify fit, phonetics and esthetics.
Best for verifying the design with a try‑in that can also serve as a spare denture.
AvaDent Full-Color Try-In
BTI · full color

Full‑Color Try‑In

A functional, one-piece try-in, printed or milled, to verify fit, phonetics and esthetics.
Best for verifying the design with a try‑in that can also serve as a spare denture.

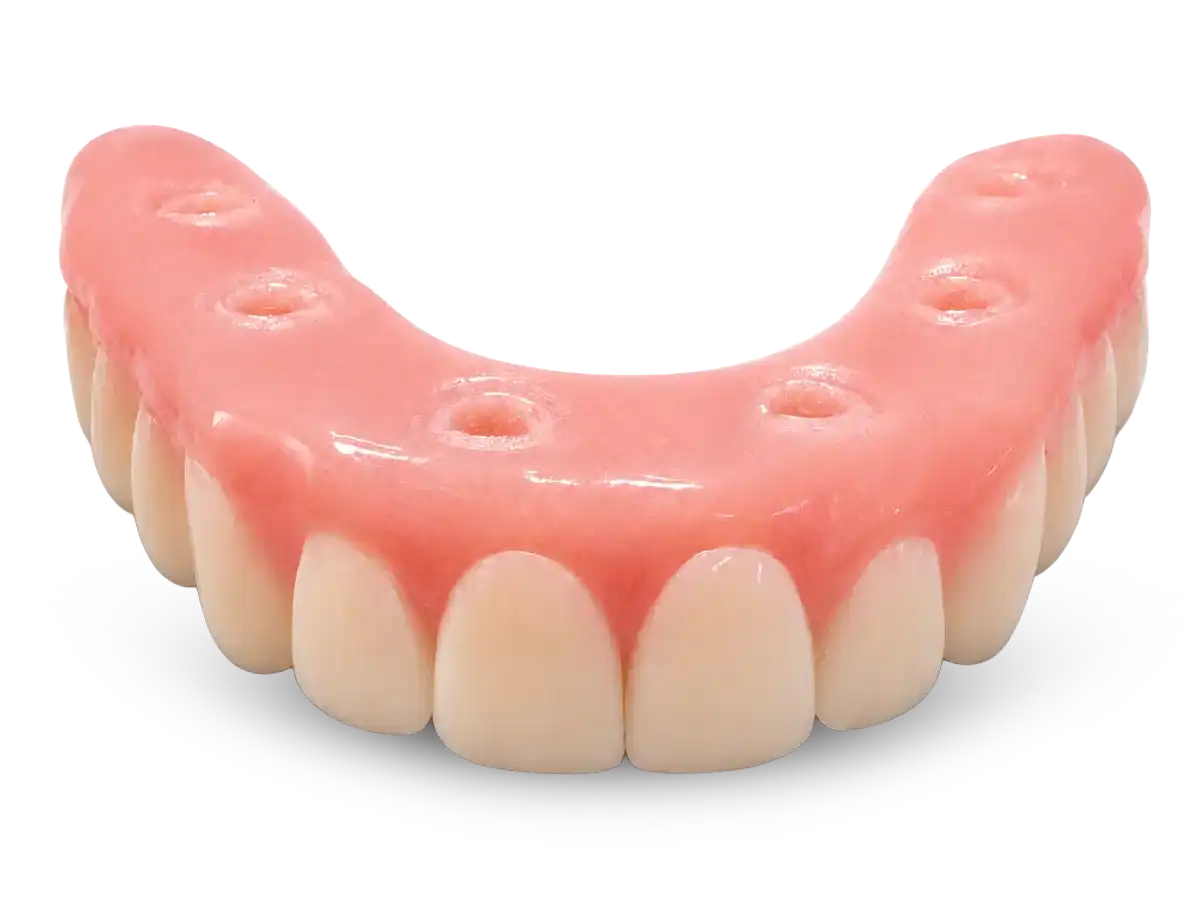

AvaDent Hybrid Try-In
HTI

Hybrid Try‑In

An exact monolithic copy of the final hybrid, to verify function, occlusion, phonetics and esthetics.
Best for fixed hybrid cases, when you want the patient to see the result before it’s made.
Base with Wax Rims
Bite records

Base Plate

Milled from scans or physical impressions of the upper and lower arches, with a wax bite rim when you note it on the Rx.
Best for patients with no existing denture, to record the bite before the try‑in.
AvaDent Wagner Try-In with teeth set in wax
Play video: Wagner Try-In protocol, 2 minutes 42 seconds
Watch: Wagner Try‑In protocol (2:42)
WTI

Wagner Try‑In

Conventional technique, digital finish.
Created by Dr. Stephen Wagner. The denture base is printed, the maxillary anterior teeth are printed individually and the mandibular anteriors as a block, all set in a special wax that softens in hot water, with no flame. Posteriors are printed, or a block of wax rims, depending on the patient’s needs.
Adjust the teeth chairside, then order the final denture. As few as three 30-minute appointments.
At the chair

Clinical procedure

Make upper and/or lower impressions
Use the AvaMeter to record the lip line at rest and at a high smile
Select the tooth mould
Digital or physical

Records to send

Scans or physical impressions of the upper and/or lower arch
AvaMeter readings for the lip line at rest and at smile
A marked wax rim bite can replace the AvaMeter readings
AvaDent Mono-Color Try-In
Play video: Mono-Color Try-In, 6 minutes 9 seconds
Watch: Mono‑Color Try‑In (6:09)
BTI · mono or full color

Mono‑Color & Full‑Color Try‑Ins

A functional try-in, made as one piece.
Created by Dr. Lars Bouma. A monolithic try-in, fully milled or printed for higher accuracy and strength. Mono‑Color is made entirely in the tooth color you choose from the shade catalog; Full‑Color adds a gum-colored base, so the patient sees teeth and gums.
Verify fit, phonetics and esthetics with your patient. It can also serve as a spare denture.
At the chair

Clinical procedure

Establish the vertical dimension of occlusion (VDO)
Make a wash impression in the reference record (try-in, existing or duplicate denture, or bite rim) using tray adhesive
Reseat and re-verify midline, incisal edge, VDO, lip support, esthetics and bite
Make the bite registration
Digital or physical

Records to send

Digital: cameo and intaglio scans of each arch, plus the bite registration
Physical: the reference record with the wash impression, plus the bite registration
Single arch: the opposing dentition
AvaDent Hybrid Try-In
Play video: Perfect Hybrid protocol, 4 minutes 28 seconds
Watch: Perfect Hybrid protocol (4:28)
HTI

Hybrid Try‑In

An exact copy of the final hybrid.
A monolithic try-in made from the same design as the final, to verify function, occlusion, phonetics and esthetics.
Adjust it by grinding or adding material, and show the patient the final result before it’s made.
At the chair

Clinical procedure

Make a final verified impression, then a verified soft-tissue master cast
Make an opposing arch impression and cast
Attach the screw-retained existing prosthesis (temporary converted denture) to the master cast
Make an interocclusal record between the existing prosthesis and the opposing arch
Physical or digital

Records to send

Mounted verified soft-tissue master cast
Mounted opposing cast
Putty verification matrix
Base with Wax Rims
Bite records

Base Plate

Record the bite when there’s no denture to start from.
Milled from scans or physical impressions of the upper and lower arches. Need a wax rim? Note it on the Rx.
At the wax rim appointment, set the vertical dimension and occlusal plane and mark the midline, smile line and canines. We design the try‑in from those records.
At the chair

Clinical procedure

Verify the record base fit; adjust or take a wash impression if needed
Border-mold each record base to capture vestibular anatomy
Seat the wax rims and verify the vertical dimension and occlusal plane
Mark the midline, smile line and canines, then make the bite registration
Digital or physical

Records to send

To order: scans or final impressions of the upper and lower arches
Digital: each record base and wax rim scanned 360°, then both scanned together in the bite
Physical: the wax rims, the opposing arch model and the bite registration

Questions clinicians ask

Which try-in should I choose?
The Mono‑Color Try‑In, our most popular, is a functional try-in to verify fit, phonetics and esthetics; the Full‑Color Try‑In is the same try-in with a gum-colored base. The Wagner Try‑In sets the teeth in a special wax so clinicians who like to move teeth can adjust them chairside. For fixed hybrid cases, the Hybrid Try‑In is an exact copy of the final.
What is the difference between the Mono‑Color and Wagner Try‑In?
The Mono‑Color Try‑In is monolithic, one piece, fully milled or printed in the tooth color you choose. The Wagner Try‑In has a printed base with the teeth set in a special wax, so they’re easy to adjust chairside.
Can my patient keep the try-in?
The Mono‑Color and Full‑Color Try‑Ins can also serve as a spare denture for your patient.
When do I need a base plate?
When the patient has no existing or reference denture. Send scans or final impressions of both arches, record the bite on the base plate at the wax rim appointment, and we design the try‑in from those records.
Can I adjust a Hybrid Try‑In?
Yes. Adjust it by grinding or adding material to verify function, occlusion, phonetics and esthetics before the final hybrid is made.
How do I order a try-in?
Select it on the Rx when you send a case in the AvaDent Portal. New to AvaDent? Create an account to get started.
Who can answer a clinical question?
Email customerserviceus@avadent.com or call 480‑275‑7144, Monday to Friday, 8 AM to 5 PM MST.

Add a try-in to your next case

Select the Wagner, Mono‑Color, Full‑Color or Hybrid Try‑In, or a Base Plate, on your Rx, or talk to our team about the right option for your patient.
